Overview

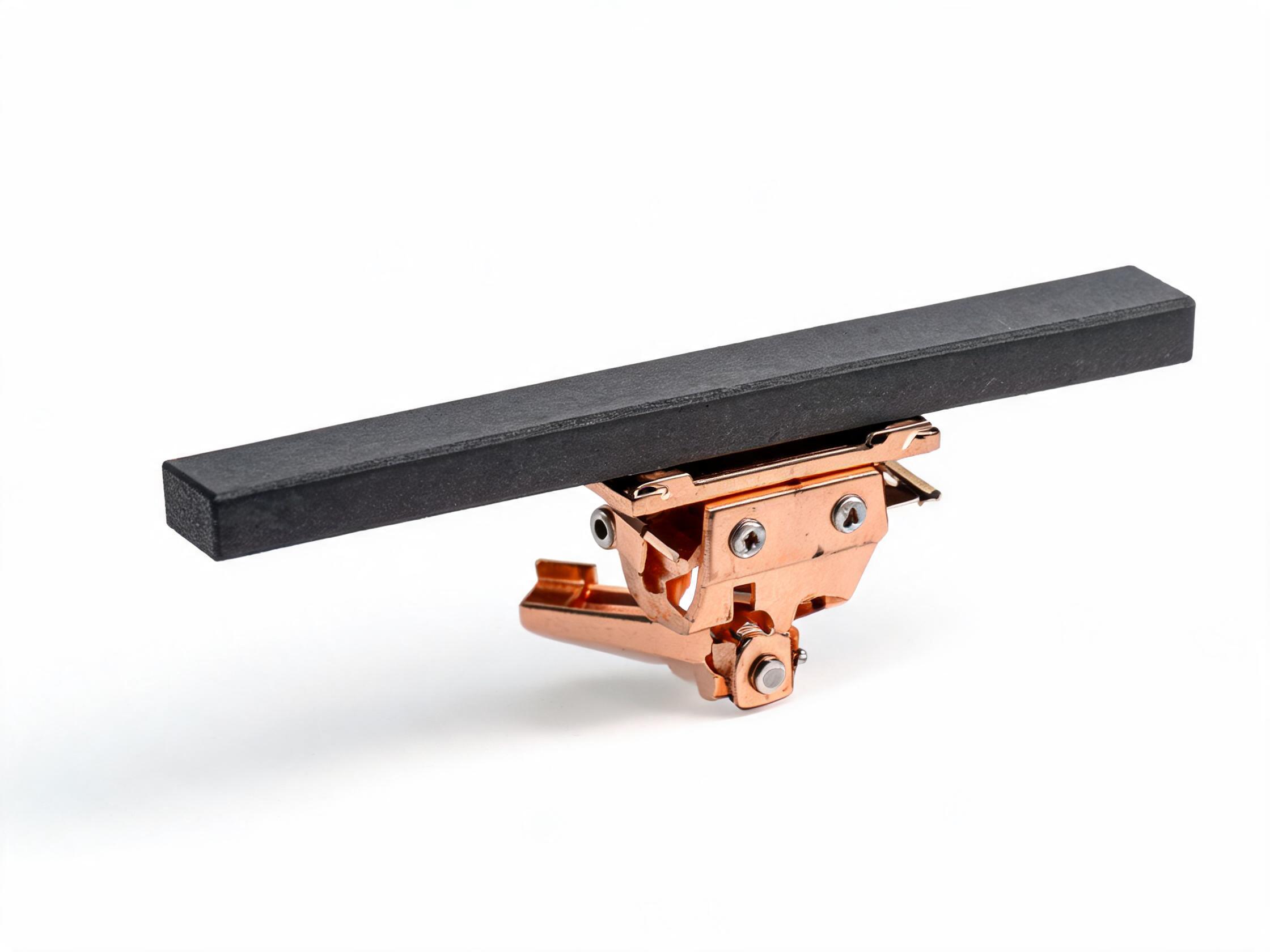

Railway pantograph and contact systems designed for efficient current collection from overhead catenary lines. Our systems ensure reliable power transmission across various rail networks, from urban trams to high-speed railways.
Key Features
- Low-wear carbon composite contact strips
- Optimized aerodynamic profile for high-speed operation
- Adjustable contact pressure for different catenary types
- Corrosion-resistant construction for outdoor durability
- Compatible with AC and DC traction systems
- Built-in arcing protection and current shunting
Technical Specifications
| Parameter | Specification |
|---|---|
| Contact Material | Carbon-based composite, copper-impregnated |
| Contact Force | 70N – 120N (adjustable) |
| Operating Speed | Up to 350 km/h (high-speed rail compatible) |
| Current Capacity | 600A – 2000A (continuous, depending on model) |
| Operating Temperature | -40°C to +80°C |
| Wear Rate | < 0.5 mm per 10,000 km (under standard conditions) |
| Pantograph Type | Single-arm, double-arm, or folded-arm |
| Standards | EN 50205-1, EN 50163, UIC 604, TB/T 1842 |
Applications
- High-speed rail (CRH series, 200-350 km/h)
- Urban light rail and tram systems
- Heavy-haul freight locomotives
- Metro and subway networks
- Mining and industrial rail systems
Contact us for detailed specifications and custom solutions.
