Overview

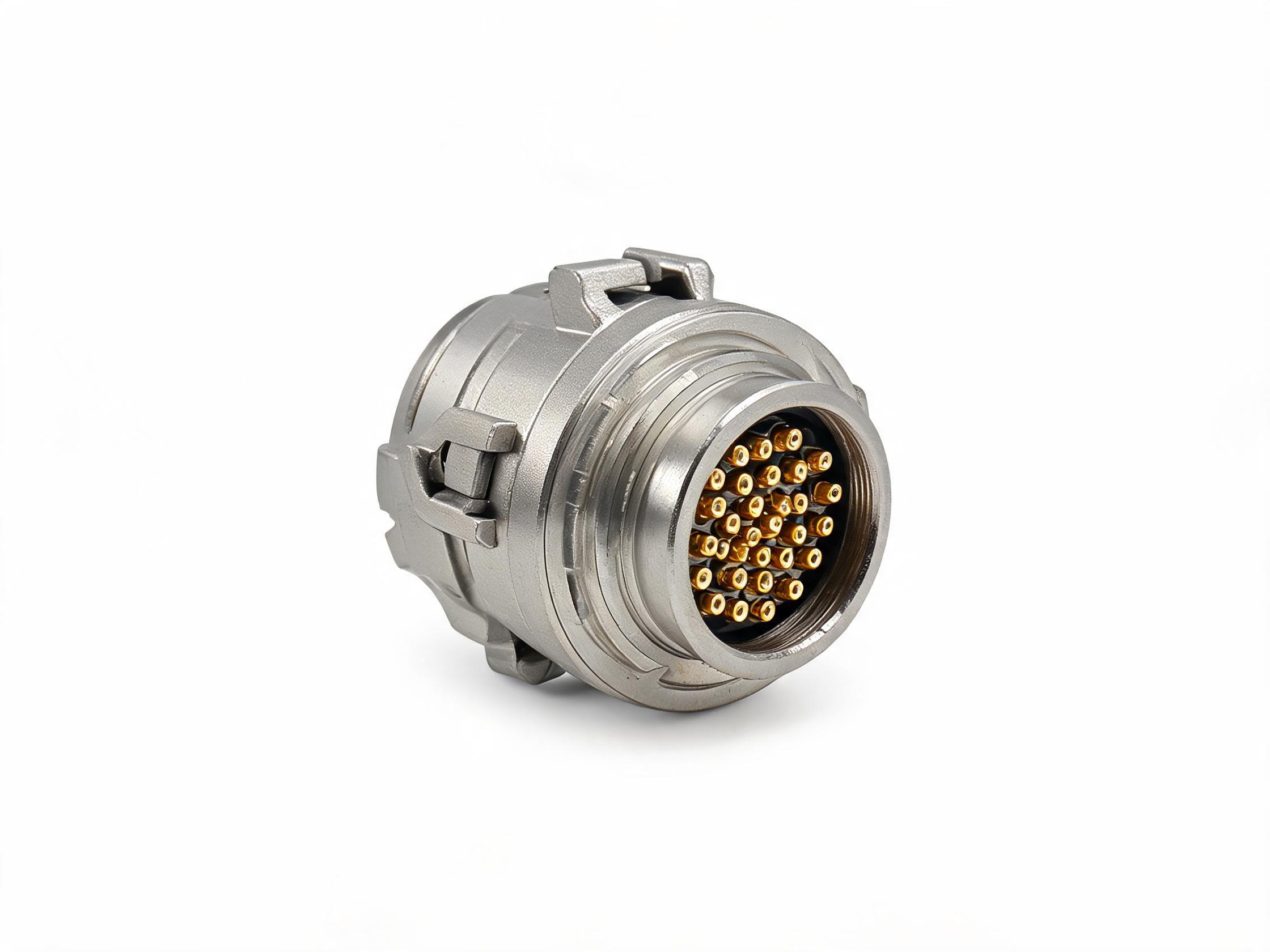

The ZH8525 series circular electrical connectors are engineered for harsh-environment applications in aerospace, military, railway, and industrial sectors. Featuring robust metal shells and reliable contact systems, these connectors provide exceptional performance in demanding conditions.
Key Features
- Rugged metal shell design with bayonet or threaded coupling
- Wide range of contact arrangements (3 to 61 pins)
- IP67 sealing for dust and moisture protection
- High-reliability contacts with gold plating
- EMI/RFI shielding for electromagnetic compatibility
- Resistant to shock, vibration, and environmental extremes
Technical Specifications
| Parameter | Specification |
|---|---|
| Contact Size | #8, #12, #16, #20, #22D |
| Number of Contacts | 3 to 61 pins (varies by insert arrangement) |
| Rated Current | 5A – 40A (per contact, size-dependent) |
| Rated Voltage | 600V AC/DC |
| IP Rating | IP67 (mated, with sealed backshell) |
| Operating Temperature | -55°C to +125°C |
| Shell Material | Aluminum alloy, cadmium or nickel-plated |
| Coupling Type | Bayonet or threaded coupling |
| Standards | MIL-DTL-38999 Series III compatible, GJB 600 |
Applications
- Aerospace and defense systems
- Railway rolling stock and signaling
- Industrial automation equipment
- Marine and offshore platforms
- Medical imaging equipment
Contact us for detailed specifications and custom solutions.
