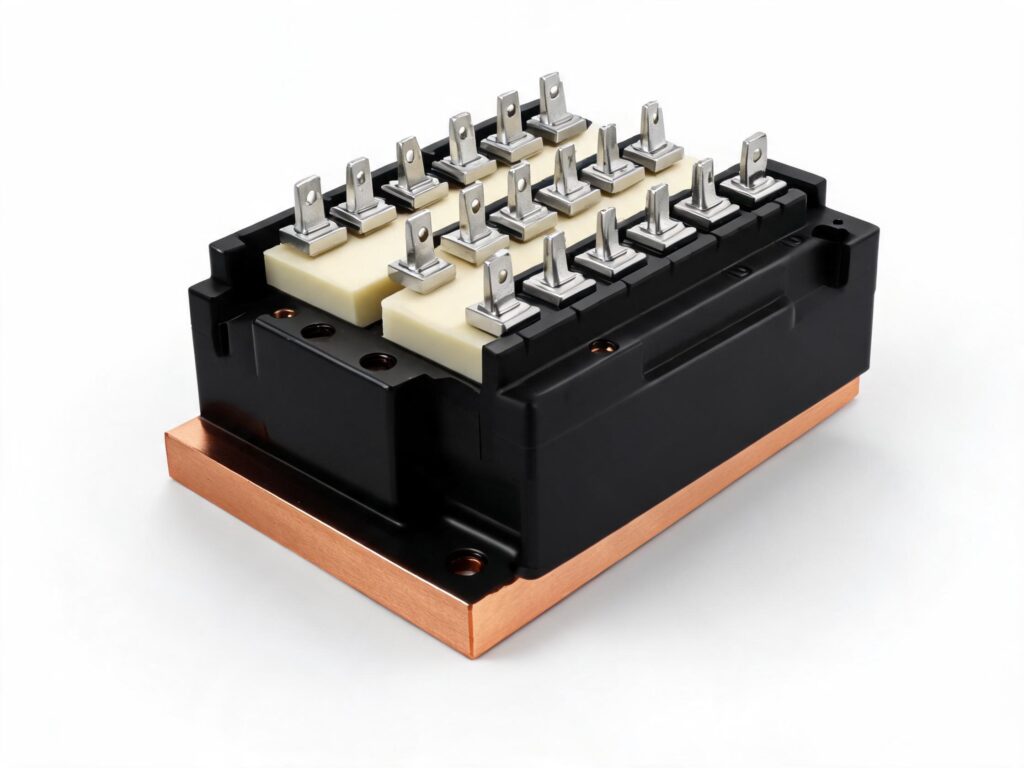

IGBT Modules

Technical Specifications Parameter Specification Voltage Rating 1200V – 6500V Current Rating 100A – 3600A Package Type Industrial standard modules (62mm, 130mm, 140mm, 190mm) Topology Half-bridge, Full-bridge, Six-pack, Chopper Switching Frequency 5 kHz – 30 kHz Isolation Voltage 4000V AC (RMS, 1 minute) Operating Temperature -40°C to +150°C (Tj) Standards IEC 60747-9, EN 50470, railway EN
